Description

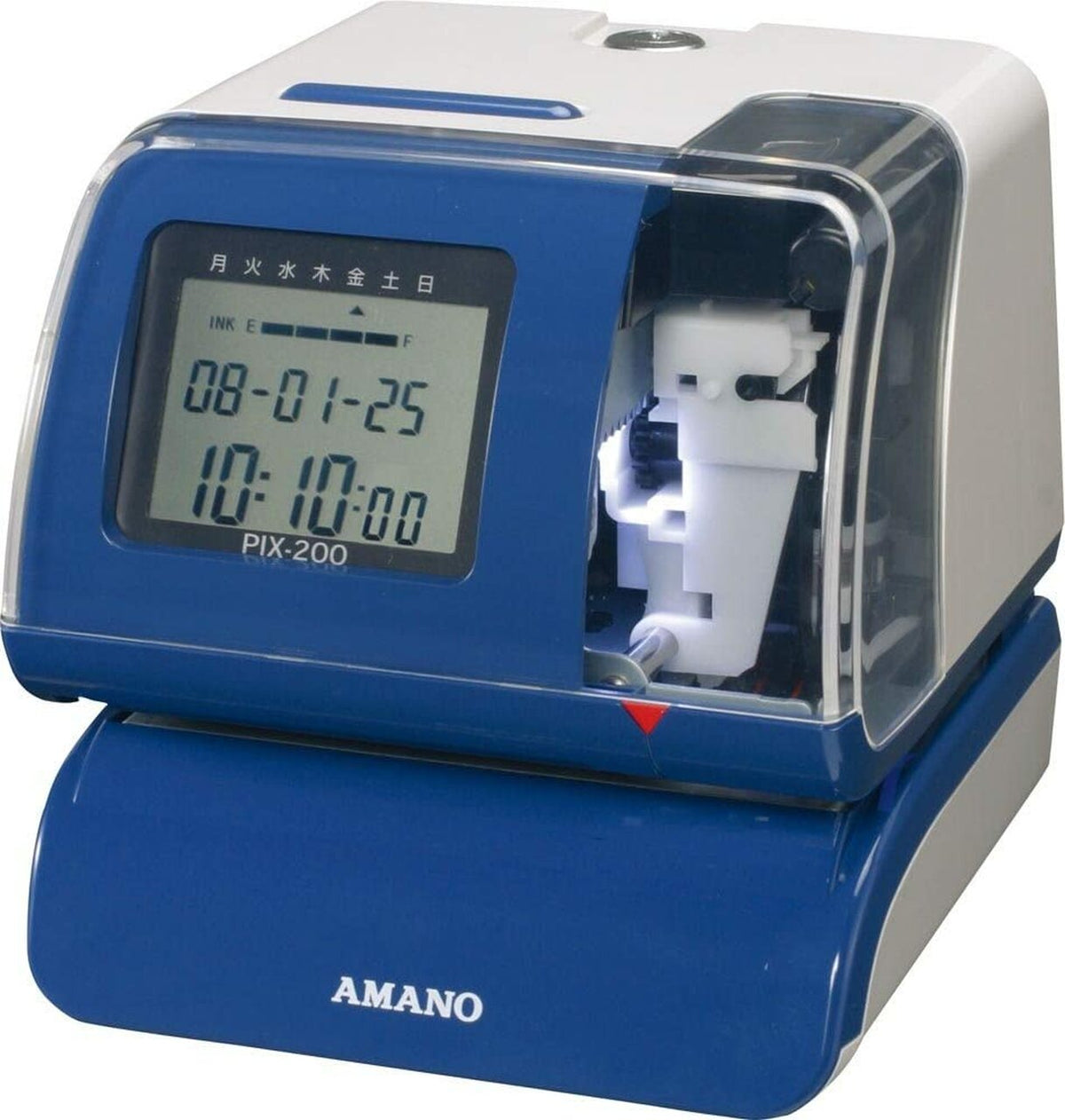

The PIX-200 is an all-in-one electronic time recorder and date stamp designed to meet the typical needs and special requirements of contemporary business.
The PIX-200 includes a wide variety of standard features and offers a set of optional accessories with unique functions. Signal kit, USB kit, Ethernet kit, Full power reserve kit.
Features and Benefits:
- Accurate, real time clock synchronization with atomic time functionality
- Illuminated print window improves efficiency on time card stamping
- Password prevents tampering with settings and reduces time card fraud
- Locking enclosure with two metal keys prevents unauthorized access
- Easy to replace ribbon cartridge saves time
- Wall or desk mount provides for flexible operation
- Ability to receive signal from atomic clock
- Automatically changes year, month, date and Daylight Saving Time
- Prints time in regular or military time; AM or PM, 0-23 hours, minutes, tenths or hundredths
- Illuminated print window for easy card alignment
- Ribbon ink capacity indicator
- 13 message printing, (RCVD, SENT etc. in 6 languages (Eng, Span, Ger, Ita, Fre, Por)
- 31 selectable preset imprint formats
- Consecutive numbering with automatic reset function
- Customized comment imprint (up to 3 lines)
- Large, easy to read digital display
- Slide lever print position adjustment
- Top mount button for manual printing
- Cartridge ribbon Battery backup
- Table or wall mount
- 3 year backup retains memory and settings
- Optional full power reserve in case of power failure (72 hours or 400 punches)
Specifications:
- Power consumption – 100/120/230 VAC 50/60 Hz
- Ambient Temperature – 14°F - 113°F (-10°C - 45°C)
- Humidity Temperature – 10% - 90% (no condensation)
- Dimensions - 6.4”H x 6.3 W x 6.7”D (163 H mm x 159 W mm x 171 D mm)
- Weight – 4.85 lbs. (2.2 kg) (not including optional battery, AC adapter)
- Memory retention – Clock and programming data kept for 3-years without AC power
- Printing - Dot matrix
- Environment – Indoor use only, dust-free environment. Keep out of direct sunlight
Options:
Full power reserve in case of power failure (72 hours or 400 punches) Item no. CJR-546500 External signal device, up to 20 weekly programs Item no. CJR-562000 Ethernet LAN synchronization to NTP server USB communication for programming via software interface
Warranty:
One year manufacturer warranty
Time Clock Accessories:
We recommend purchasing time clock ribbons in addition to the clock. You can purchase these ribbons in either red or black.
