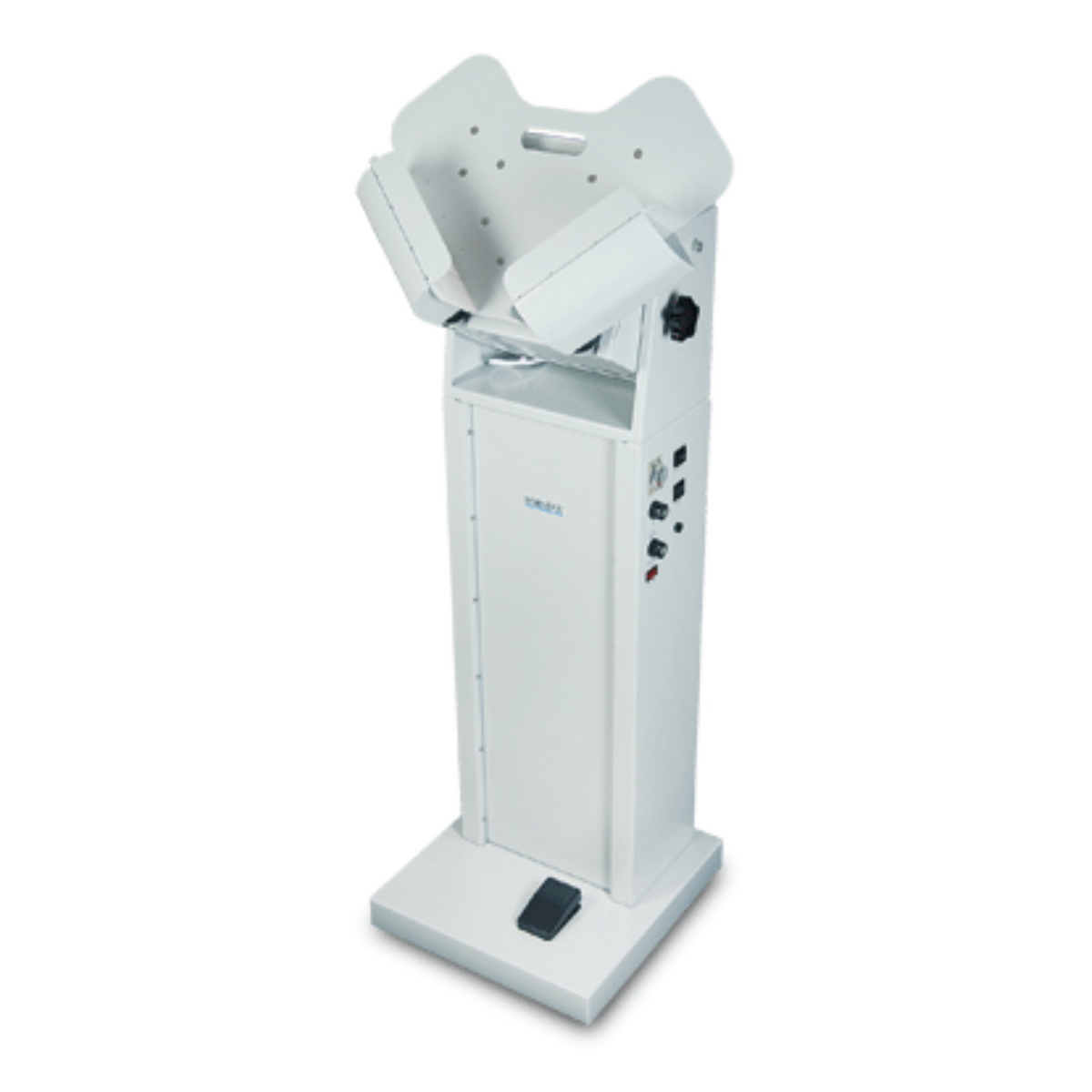

Formax FD 404A1 High-Capacity Air Jogger

The Formax FD 404A1 High-Capacity Air Jogger is designed for optimal efficiency in print shops and production houses. This upright air jogger aligns and dries printed sheets while eliminating static electricity, making it a vital addition to any paper handling workflow.

Key Features:

• Align, Dry, and Remove Static: Ideal for print shops, aligns and dries printed sheets while reducing static electricity.
• Foot Pedal Control: Allows for two-handed loading and unloading.
• User-Friendly Control Panel: Easy operation with variable speed and air pressure controls.
• Variable Speed Control: Up to 3,000 vibrations per minute for efficient jogging.
• Variable Air Pressure Control: Up to 29,000 rpm to reduce jogging time.
• Tilting Jog Bin: V-shaped bin adjusts from vertical to horizontal, accommodating various operating requirements.
• High Capacity: Jogs up to 940 sheets of 20# paper.
• 60-Second Countdown Timer: Enables unattended jogging.
• Three Operating Modes: Vibrate and Air, Air-only, and Vibrate-only for flexible operation.

Specifications:

• Variable Vibration Speed: Up to 3,000 vpm
• Variable Air Control: Up to 29,000 rpm
• Bin Size: 3.75” D x 20.375” W
• Media Size: 5” x 7” Min - 12” x 18” Max
• Sheet Capacity: Up to 940 sheets 20#
• Dimensions: 21” W x 18” D x 54” H
• Weight: 100 lbs.
• Voltage: 110V/120V, 50/60 Hz
• Safety Certifications: CE Approved
