Description

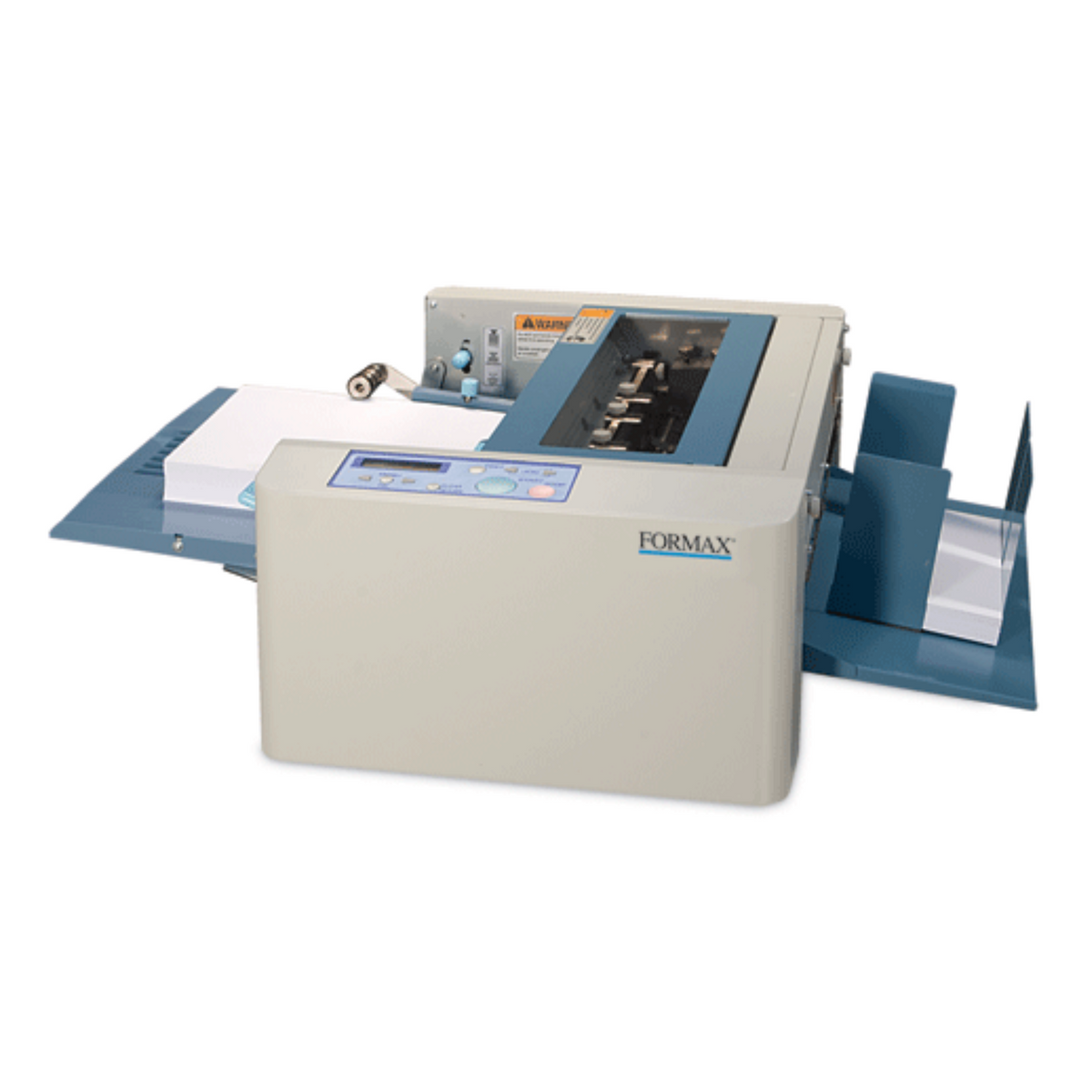

Formax FD 574 Cut-Sheet Cutter
High-Speed, Accurate Cutting for Digital Print Forms
The Formax FD 574 Cut-Sheet Cutter is the ultimate solution for processing forms generated from digital printers. With the capability to cut, slit*, or perforate* up to 44 forms per minute, it ensures precise and razor-sharp edges for every piece. Ideal for checks, coupons, tickets, membership cards, and more, this cutter delivers unparalleled performance with a cutting accuracy of +/- 0.5mm.
Key Features:
- User-Friendly Control Panel: Provides operator prompts for effective and efficient operation.
- High-Speed Output: Processes up to 2,640 sheets per hour with cutting accuracy.
- Versatile Cutting Options: Pre-programmed for six popular paper sizes and up to 100 programmable jobs for custom cutting operations.
- Top-Loading Feed System: Ensures smooth and efficient feeding of forms.
- Automatic Setup: Measures sheet and sets cutting positions according to paper size for hassle-free operation.
- Counter: Keeps track of the number of forms fed and pieces cut.
Options:
- Slitter: Optional attachment for slitting operations.
- Perforator: Optional attachment for perforating operations.
- Belt Conveyor Stacker: Provides neat, sequential stacking of burst forms for organized output.
Specifications:
- Speed: Up to 44 forms per minute (with 3 cuts)
- Form Size: 4.17” x 4.33” up to 14.34” x 17”
- Paper Weight: 58 - 157 gsm
- Minimum Cutting Length: 2”
- Cutting Tolerance: +/- 0.5
- Cutting Method: Guillotine cutter
- Feed Tray Capacity: Up to 500 sheets 64gsm
- Cut Size: 2.16” - 8.27”
- Stacker Capacity: Up to 800 sheets 64gsm
- Programmable Jobs: Up to 100
- Weight: 71 lbs.
- Dimensions: 32” L x 23” W x 10” H
- Power: 120 - 230V, 50/60 Hz, 0.5 - 0.3A
*With optional slitter and/or perforator attachments.
Benefits
- Precision Cutting: Ensures accurate, clean cuts for a professional finish on every document.
- Efficient Workflow: High-speed processing and automated setup streamline your operations.
- Versatile Functionality: Handles a variety of paper sizes and weights with customizable cutting options.
- User-Friendly Operation: Simple control panel and top-loading feed system make it easy to use.
The Formax FD 574 Cut-Sheet Cutter is a powerful tool for any organization that needs to process large volumes of digitally printed forms. Its high-speed, precision cutting capabilities combined with user-friendly features make it an indispensable asset for achieving professional results efficiently.
